1976 115hp 1150 Mercury Thunderbolt

adesoto

Cadet
Joined
Jul 23, 2007
Messages
29
The motor won't crank. Battery is charged, the motor turns over and with good speed, it has good compression 120psi on each cylinder, has spark but will not crank... if I spray some gas/oil mix in the 1st cylinder it will fire up but then it shuts off.. All Carbs, I believe have gas in them since I pump it in from the gas take pump as the bottom of them are leaking some drips of gas. Can it be the fuel pump? I just bought this boat and motor and this is my first so I'm new to all this. Any Ideas what I should be looking into to fix this problem..
Thanks,
Aaron


The-Machinist

Petty Officer 1st Class
Joined
May 4, 2007
Messages
299
Re: 1976 115hp 1150 Mercury Thunderbolt

How long was this monster dormant? Im gonna step out on a limb and say its time for some carb rebuilding action. If I dont know any thing about a new out board this is on the list of things that gets done before I trust it to bring my tail safely back to the ramp. Also, If your not Positive about the age/condition of your water pump impeller, you should replace it too. After all, just how far can you swim? Not very far anymore in my case:D


Scaaty

Vice Admiral
Joined
May 31, 2004
Messages
5,180
Re: 1976 115hp 1150 Mercury Thunderbolt

Start by rebuilding the fuel pumps...cheap...then take it from there


adesoto

Cadet
Joined
Jul 23, 2007
Messages
29
Re: 1976 115hp 1150 Mercury Thunderbolt

I'm familiar with rebuilting the Carb's with carb kits but how do you rebuild a fuel pump?
Thanks for the info,
Aaron


jheron

Petty Officer 1st Class
Joined
Jul 21, 2004
Messages
284
Re: 1976 115hp 1150 Mercury Thunderbolt

Its easier than the carbs.... just a set of gaskets and some rubber....

Regards Jon


Plainsman

Rear Admiral
Joined
Apr 2, 2006
Messages
4,062
Re: 1976 115hp 1150 Mercury Thunderbolt

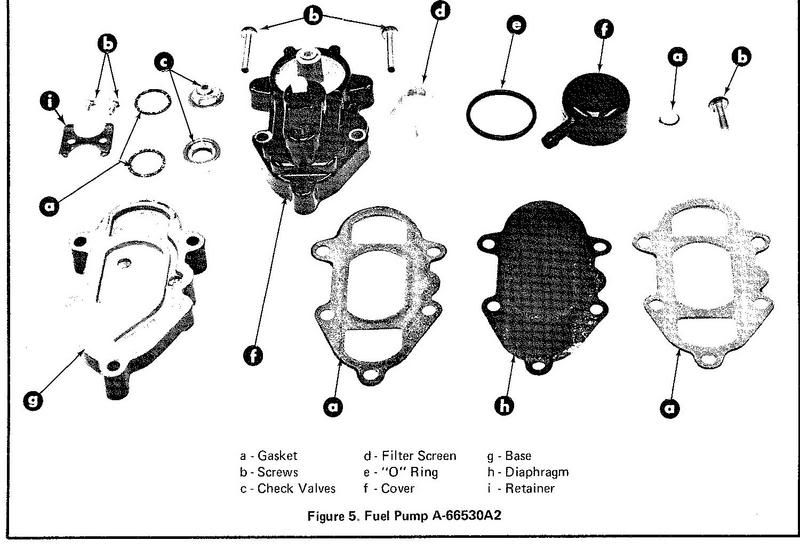

One thing to remember when rebuilding the fuel pump is how the 2 small check valves go in.

Mine had the squeeze on hose clamps. I just used small hose clamps when I put it back together.



You can get the manual here:http://cgi.ebay.com/ebaymotors/MERC...emQQcategoryZ50439QQihZ011QQitemZ320075140573


adesoto

Cadet
Joined
Jul 23, 2007
Messages
29
Re: 1976 115hp 1150 Mercury Thunderbolt

Great Guys Thanks for the info, I can't wait to get her back into shape. I've heard so many goods things about these motors..
Just to answer how long has the monster been dormat since summer of 05.. picked her up from a fellow who her her on a 17ft bomber ski boat.

I've got a 16ft Dyna Trak 160 bass boat trihull, does anyone have any ideas how fast she'll run on this type of boat?

She also has tilt and trim so does that make a bigger difference?

Well, I'm going to start rebuilding her little by little..
does anyone have a good website to by parts...
I have two websites: mercury express parts & crowley marine
anyothers cheaper than them?

This weekend I'm getting the carb kits, water impeller and fuel pump..is there anything else that I might need?

I checked the lower unit oil also and it was a dark gray color. Is that color bad?

Thanks for the help guys, I really appreciate it especially being new to all this.
Aaron


emckelvy

Commander
Joined
Jan 16, 2004
Messages
2,506
Re: 1976 115hp 1150 Mercury Thunderbolt

Aaron, this site does sell parts.

The one I use regularly is www.boatfix.com

Good prices and they ship promptly. They also have a cross-reference from OEM part numbers to Sierra aftermarket parts.

This site is pretty handy for looking up OEM parts:

http://www.dougrussell.com/partscatalog/collections/index.cfm?fuseaction=collectdetails&colid=01

On the lower unit oil, it could indicate water intrusion. Most likely places on these are the driveshaft oil seals in the water pump base, and the shift shaft bushing assy oil seals.

Change the oil and then check it periodically for further contamination, if so something's leaking.

If you want to do some preventive maint while you are replacing the impeller, you could pull the water pump base and replace the 2 driveshaft seals. In addition to the seals you'll need the pump base O-ring and gasket.

If you have a source of low pressure air you can pressurize the lower unit (12 psi max) thru either the oil vent or drain hole, after draining the oil, to check for leaks. Prepare a soap solution and spray or brush on the (3) shafts' seal areas and any leaks will bubble right up. Sometimes if you turn the shaft a bit or wiggle it to and fro you'll catch a pesky leak that otherwise wouldn't show up.

HTH..........ed

Joined
Jun 27, 2008
Messages
20
Re: 1976 115hp 1150 Mercury Thunderbolt

I would check to make sure there is no water in the fuel. I experienced this problem and I drained the fuel tank, completely filled it and it ran good. I have a 1978 1150 and after replacing the impeller, cleaning the carbs, replacing the fuel lines, new gear lube in the lower unit it ran great. All that only cost around $40 and about 2 hours of my time. Spray a couple cans of carb cleaner while running the motor on the rabbit ears and you will be amazed at how much sludge comes out.


williamp

Recruit
Joined
Apr 30, 2009
Messages
1
Re: 1976 115hp 1150 Mercury Thunderbolt

i don't know how to post so i'll try to ask you. how do i find the numbers on a thunderbolt engine to find out what i have for a motor.


cell

Petty Officer 1st Class
Joined
Apr 16, 2009
Messages
208
Re: 1976 115hp 1150 Mercury Thunderbolt

Spray a couple cans of carb cleaner while running the motor on the rabbit ears and you will be amazed at how much sludge comes out.


Could be the lubricating oil from the fuel oil mix that your seeing.....use a petroleum based product.Its a little safer for your 2 stroke....
