1980 140 johnson tilt trim problems

[lil' beaver]

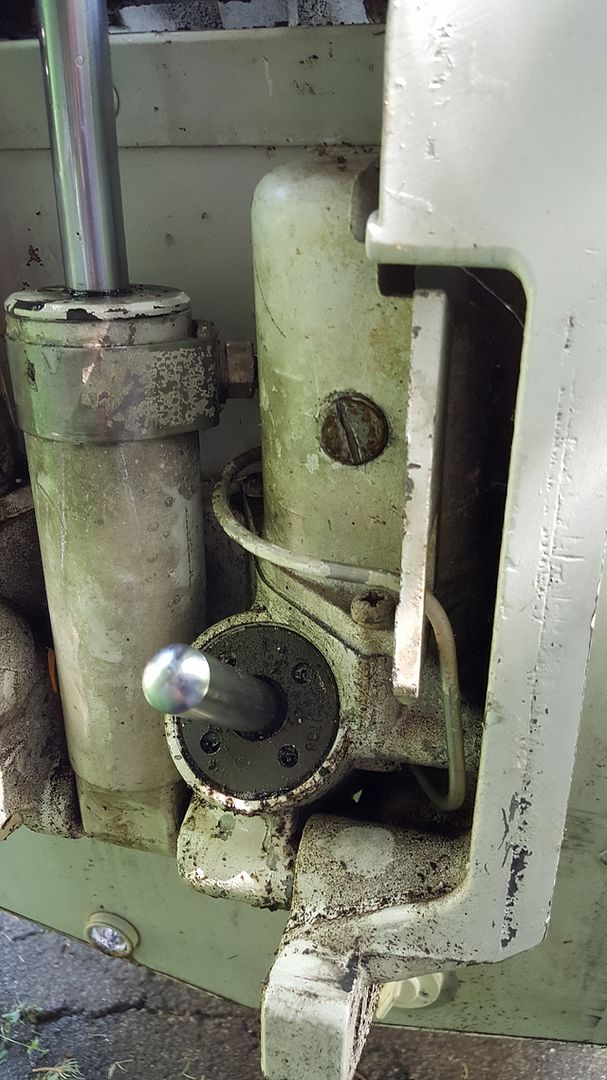

I need to fill up my reservoir with fluid but can not loosen the fill screw. I have a large impact bit that should work, but I'm at the point if I go any farther I will completely destroy the screw slot. I've been soaking it in pb blaster for a couple of days but thats no help. can I use heat or is this a place I shouldn't?

I decided to just remove the tilt trim unit and switch it out with the one on my 81' 140 rude. Now I can't get the pin holding the tilt ram on. That thing is seized tight. How should I go about getting that to budge?

I either have to get the fill screw loose or the pin out so I can swap units. Help!



[emdsapmgr]

I have a long 18" square-shank screwdriver. Purchased just for slotted lower unit drain plugs. Huge screwdriver tip. If I force the head of the screw driver into the screw slot, then use a crescent wrench on the shank to assist in turning-it will usually budge the screw head. Good luck. Most auto parts stores also sell a hammer drive screwdriver. Made for screws that won't budge. Big slotted head and an internal twist mechanism. When you rap it with a hammer, it moves the head just enough to break it free.



[boobie]

Get an impact driver with the correct bit and you should get it out. Plus you'll use it for other things on the motor.
