1986 6.5 hp

S

saltchuckmatt

Commander
Joined
Jul 19, 2019
Messages
2,811
You'll have to wait for some of these old crusty guys to get out of bed to answer this one but I'm pretty sure there's an OMC commercial guide for that motor.

R

racerone

Supreme Mariner
Joined
Dec 28, 2013
Messages
38,438
Just get a kit for a 6 or 8 HP-------All the same carburetor parts in them !!

C

Crosbyman

Vice Admiral
Joined
Nov 5, 2006
Messages
5,655
bluelargo said:
How would I order a carb kit for ab 86 , 6.5hp commercial motor nobody lists a 6.5
Click to expand...
what is wrong with the carb anyway ? generally a good and complete cleaning solves the problem.

did you clean out the top low speed circuit... the small tube is a problem sometimes make certain it is clear ans installed properly. clean & blow all orifices.

if nothing is broken or internally damaged a good cleaning usually does it .

a sudden death sounds like a plugged carb....or fuel flow problem somewhere if not an electrical problem (sparks ok ??) .

B

bluelargo

Cadet
Joined
Mar 25, 2024
Messages
8
Hello thanks for the response , so I'm curios how do I look up parts for a 6.5 , are they the same up to 8hp ? Just can't seem to find these motors listed in any parts source ?

B

bluelargo

Cadet
Joined
Mar 25, 2024
Messages
8
racerone said:
Just get a kit for a 6 or 8 HP-------All the same carburetor parts in them !!
Click to expand...
Okay I was wondering that ,I'm thinking the motor shares all the same parts with 6/8 horse , and am I right that the lower unit is different and from a 3 cyl ?

R

racerone

Supreme Mariner
Joined
Dec 28, 2013
Messages
38,438
??----There is no comparison between this little gearcase used on the 4.5 / 6 / 6.5 / 7.5 / 8 hp and that of the 3 cylinder 25 / 35 HP.-----Do you not have a dealer in your area that you can trust ?

S

saltchuckmatt

Commander
Joined
Jul 19, 2019
Messages
2,811
Here is more info.

How to Tune Up Evinrude, Super 6.5 HP

Hello Forum this is Francisco Gomez from Cumana, Venezuela, This is my first time in this Forum, Recently I purchased a Evinrude Super 6.5 HP, but unfortunately I do not know how to tune up the engine and the ideal oil -gasoline mixture, I was locking for a web side link or something where I...
forums.iboats.com forums.iboats.com


Attachments

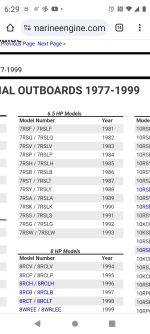

  • Screenshot_20240327-062906.png
    327.3 KB · Views: 3
R

racerone

Supreme Mariner
Joined
Dec 28, 2013
Messages
38,438
The decals / marketing is the difference on this motor.-----All the same parts as the 6 / 8 HP models.

B

bluelargo

Cadet
Joined
Mar 25, 2024
Messages
8

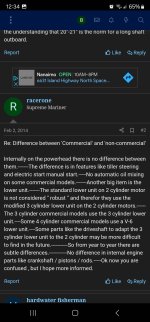

Are you sure cause I posted a picture of a post you made ,stating that the lower units are modified 3cyl units ???? Which is correct

R

racerone

Supreme Mariner
Joined
Dec 28, 2013
Messages
38,438
That refers to the difference in gearcases on the 2 cylinder 45 HP , yes 45 hp outboards.-----The 2 cylinder 40 / 45 / 48 / 50 / 60 HP gearcases are not known to be robust !!----Therefor the 3 cylinder 70 HP was adapted for them.-----The little 6 / 7.5 / 8 HP motor does not need the " monster " 25 / 35 HP gearcase !!!

B

bluelargo

Cadet
Joined
Mar 25, 2024
Messages
8
racerone said:
That refers to the difference in gearcases on the 2 cylinder 45 HP , yes 45 hp outboards.-----The 2 cylinder 40 / 45 / 48 / 50 / 60 HP gearcases are not known to be robust !!----Therefor the 3 cylinder 70 HP was adapted for them.-----The little 6 / 7.5 / 8 HP motor does not need the " monster " 25 / 35 HP gearcase !!!
Click to expand...
Ì


Attachments

  • Screenshot_20240328_003438_Samsung Internet.jpg
    Screenshot_20240328_003438_Samsung Internet.jpg
    559.5 KB · Views: 3
