1992 Johnson 175 Silver Star not getting fuel.

[WetDreamTX]

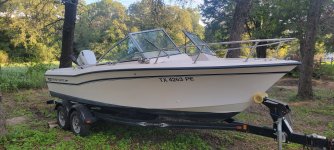

I just got a 1992 Grady White 190 in a trade but it does not run. I was told it was a fuel issue. I removed what I'm guessing in the supply fuel line and I'm not getting any fuel coming out because the primer(squeeze thingy) his hard as a rock. I've never owned a boat or took a cover off an outboard, it seems maybe a clogged line? I just don't know where



[racerone]

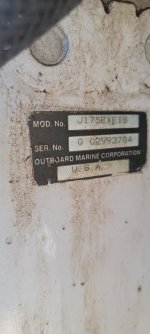

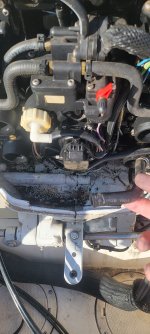

A 1991 model.------You showed the oil tank in that one picture.-----It has VRO " automatic oil injection "-----But up to you to verify that system is working.--=--Learn about the electric primer valve , as the red lever appears to be in the wrong position.-----Start with a compression test.----Post the numbers here.-----Then check for spark ( 3/8" gap ) on all leads.-----I suspect that there are issues with this motor !



[WetDreamTX]

A 1991 model.------You showed the oil tank in that one picture.-----It has VRO " automatic oil injection "-----But up to you to verify that system is working.--=--Learn about the electric primer valve , as the red lever appears to be in the wrong position.-----Start with a compression test.----Post the numbers here.-----Then check for spark ( 3/8" gap ) on all leads.-----I suspect that there are issues with this motor !

Where can I get the correct service manual for this motor?



[dingbat]

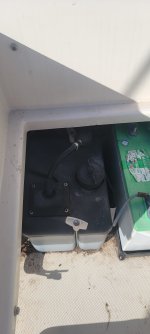

I removed what I'm guessing in the supply fuel line and I'm not getting any fuel coming out because the primer(squeeze thingy) his hard as a rock. View attachment 369655

If your pumping the Primer (squeezy thing) in the picture, your squeezing the oil system primer, not the fuel primer

Manual wise, E-bay is probably your best bet for hard copy.

Can get PDF version here

1991 Johnson 150HP-175HP 507950 Outboard Service Manual

1991 Johnson 150 HP thru 175 HP Outboard Motor Service and Repair Manual # 507950 covers 150HP J150ELEI, J150ELAI, J150EXEI, J150NXEI, J150GLEI 175HP J175EXEI, J175GLEI .pdf download

watercraftmanuals.com
