2007 3.0 Carb Settings

[bjarnold1]

What is the factory spec for the air/fuel mix screw?. I've seen posts that say 1.5 turns out, 2 turns out, 4 turns out



[Scott06]

What is the factory spec for the air/fuel mix screw?. I've seen posts that say 1.5 turns out, 2 turns out, 4 turns out

Start with 1.5 out adjust as needed to get it to idle well



[Fun Times]

Being a 2007 engine year the carb should be a TKS (Turn Key Start) so getting access to the air mixture screw is a bit more challenging and it takes a special fitting tool to help adjust the screw.

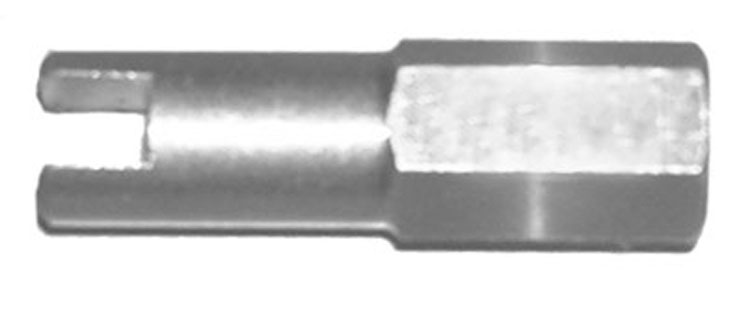

TKS Carburetor Mixture Adjusting Tool 91-866201​ ​
