Fuel pump/carburetor

[ericcarr]

OK bear with me here guys, I just got done doing a swap on my 1990 sea Ray Sundancer with the 7.4 454 big block motor. I also attempted to rebuild my Quadra jet carburetor and I must’ve messed something up so I went ahead and purchased a new Holley750 double pumper carburetor for it and I guess my question is where in the world do I hook up my hose that goes from my fuel pump to the carburetor for when the fuel pump fails? Also what gets hooked up if anything to the side of the metering block on the 750 ?



[ericcarr]

Also where can I get a Holley throttle bracket to use?



[Paintman1960]

Michigan Motors



[ericcarr]

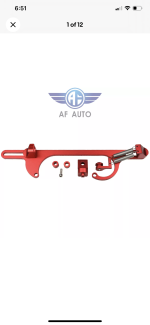

Will one of these work?



[Paintman1960]

Doubtfull, They have the one ya need



[Rick Stephens]

Is that a marine carb? Doesn't look like it.



[ericcarr]

Is that a marine carb? Doesn't look like it.

Nope….



[Paintman1960]

That fitting on side of metering block is for Vacuum on a car engine to distributor,Suggest a Marine carb like Rick called out



[Scott06]

Nope….

Then it will not have a fuel pump diaphragm rupture hose connection



[ericcarr]

Then it will not have a fuel pump diaphragm rupture hose connection

Where would that connection be at on the carb



[Scott06]

Where would that connection be at on the carb

There isnt one on an automotive carb…look at your old q jet you will find a nipple on there. On eddys it pressed into the cast at top if carb. Do yourself a favor and rebuild the q jet or get a marine carb.



[San_Diego_SeaRay]

Where would that connection be at on the carb

As per another thread, Holleys are not very common on Mercruisers and certainly not OEM AFAIK. So I don't think anyone is going to be be able to tell you where it "should" be on a Holley.
