tether switch

[vintage MFG]

sea dog tether switch. red/black wire. how to connect to a mag system ign switch, 5 post, 'M' @ 3 & 9 o'clock, Power @ 6, 'S' @ 11, 'ON' @ 12, vintage 63 boat, 62 eng, 2cyl any help is appreciated, Thanks



[F_R]

Connect it to the two "M" terminals



[Crosbyman]

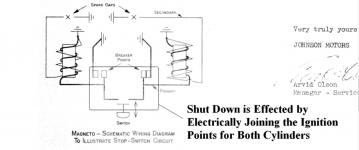

basic diagram



[vintage MFG]

Connect it to the two "M" terminals

awesome, thanks



[vintage MFG]

basic diagram

excellent, thank you
