Mercruiser qsd 2,8 Tuning box connections

[Rogerhans1]

Hi. Just bought myself a tuning box for my qsd 2,8 .
The seller do not have any connection diagram for this engine.
Does anyone know where to locate this connection ? Pictures maybe

Thanks From Roger Hansen , Norway



[alldodge]

Looks to be a diesel
Found this which shows how to connect
https://www.ptronic.com/performance-chip-mercruiser-qsd-2-8-220.htm



[Rogerhans1]

Looks to be a diesel
Found this which shows how to connect
https://www.ptronic.com/performance-chip-mercruiser-qsd-2-8-220.htm

Hi. Thanks but it do not show where to connect on the 2,8 qsd



[alldodge]

There is a tab "Fitting Diagram" which shows how to connect



[Rogerhans1]

There is a tab "Fitting Diagram" which shows how to connect

Yes . but not for the right engine . only examle .



[Scott Danforth]

You plug into the CAN connector



[alldodge]

Find the connector that looks like the one you have. Unplug it and if its the correct one then put the unit in between the 2



[Rogerhans1]

Find the connector that looks like the one you have. Unplug it and if its the correct one then put the unit in between the 2

Ok. Thanks , Will do that , il tell when i find it



[Rogerhans1]

Ok. Thanks , Will do that , il tell when i find it

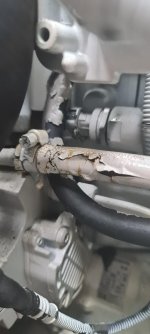

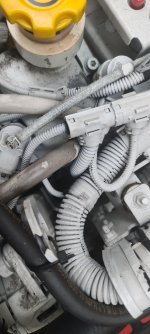

Did find it , a bit tricky to connect



[alldodge]

Good deal thanks for updating
