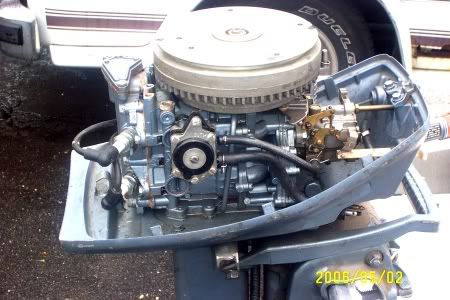

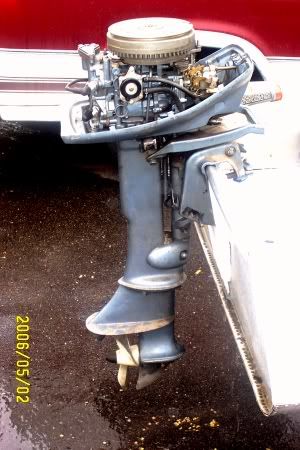

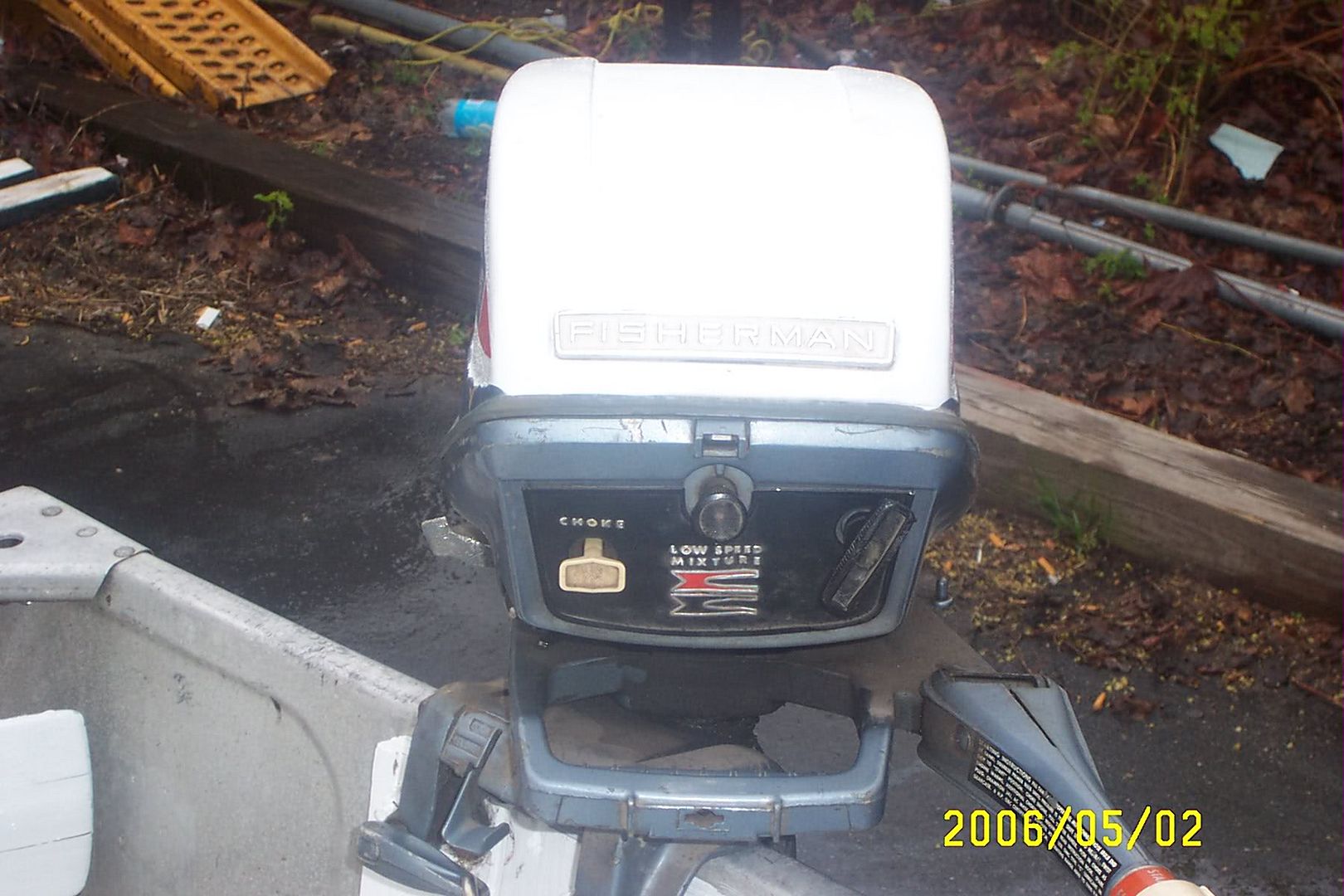

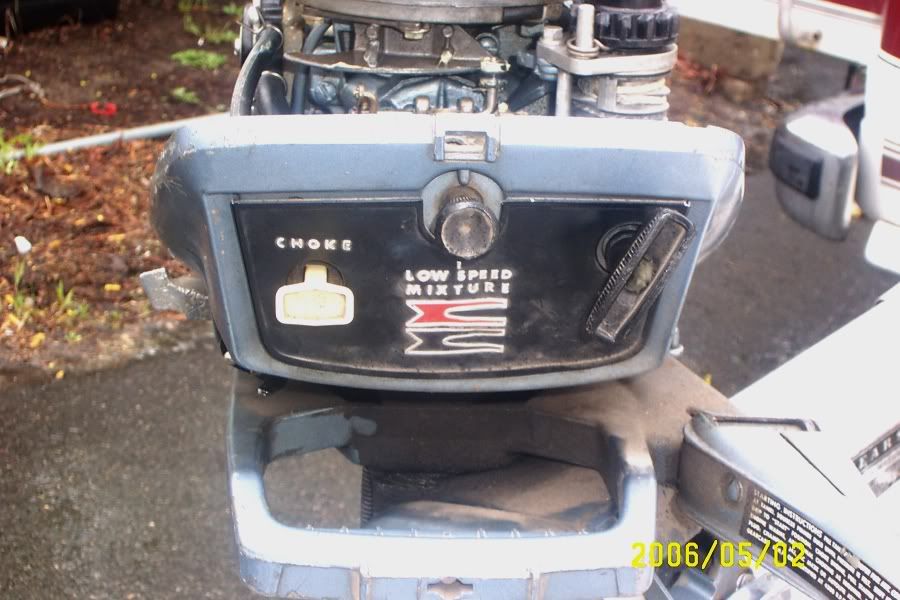

Hello all I hope this is ok here , I apoligize if I put it wrong section. I don't know what year engine this is. I would also like to know more about this model if possible , maintenance, oils, levels, and anything else a new person to outboards should know. Thanks <br /><br />Here are some links to pics I took of the engine as asked. <br /><br />
<br /><br />
<br /><br />
<br /><br />
<br /><br />
<br /><br />
<br /><br />
<br /><br />

Chinewalker

Chinewalker

Fleet Admiral
Joined
Aug 19, 2001
Messages
8,902
Re: Pictures of motor

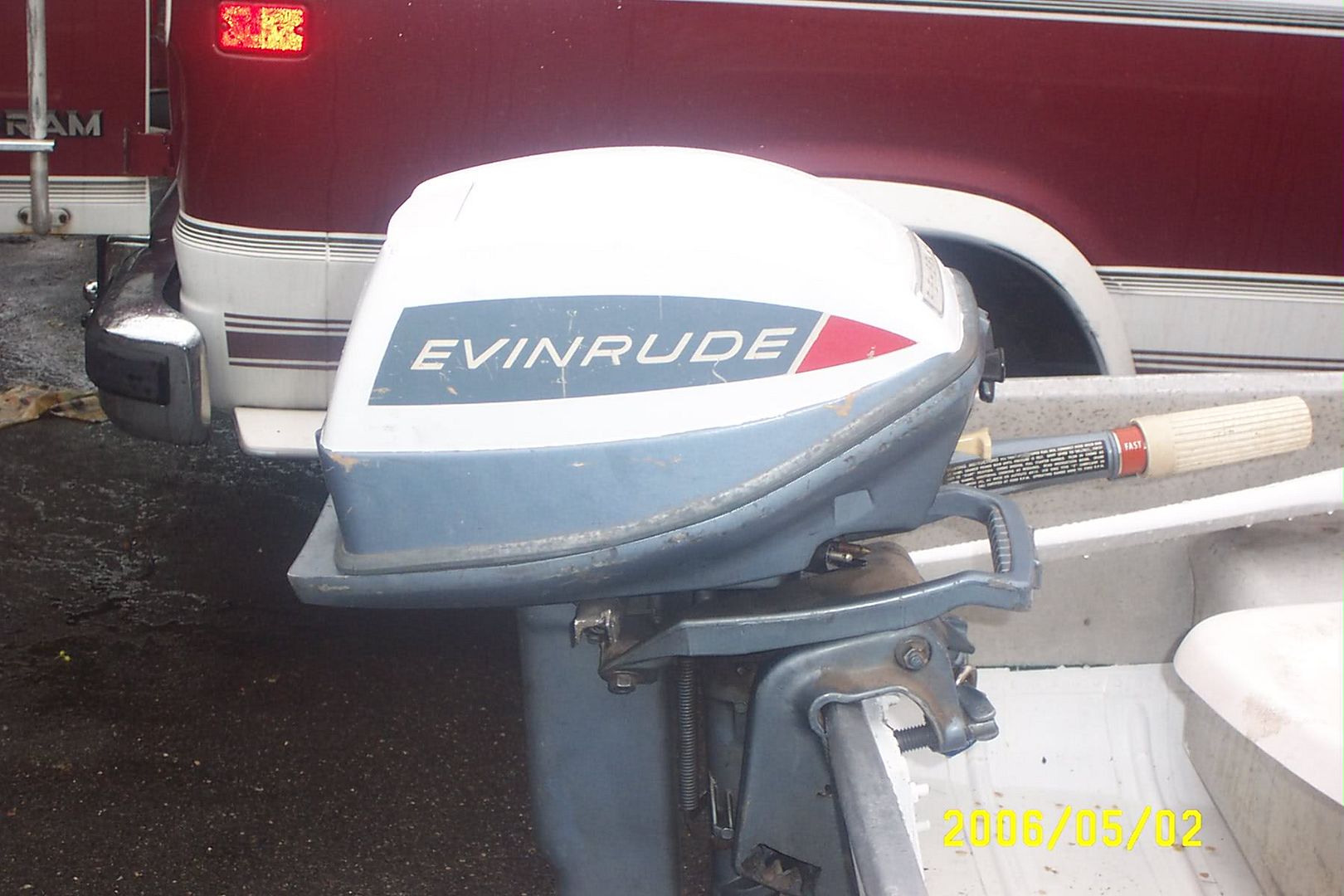

Going by the decals on the cowling, you've got a 1965... <br />
<br />- Scott

X

Xcusme

Commander
Joined
Apr 21, 2003
Messages
2,888
Re: Pictures of motor

Nice pics guys, but you're killing the dial-up folks with the photo sizes. :eek: <br /><br />Jump here..... Photo Resizer (Free program) and download the program. Resize the pics and upload back to photobucket. ;)

E

ezeke

Supreme Mariner
Joined
Sep 19, 2003
Messages
12,532
Re: Pictures of motor

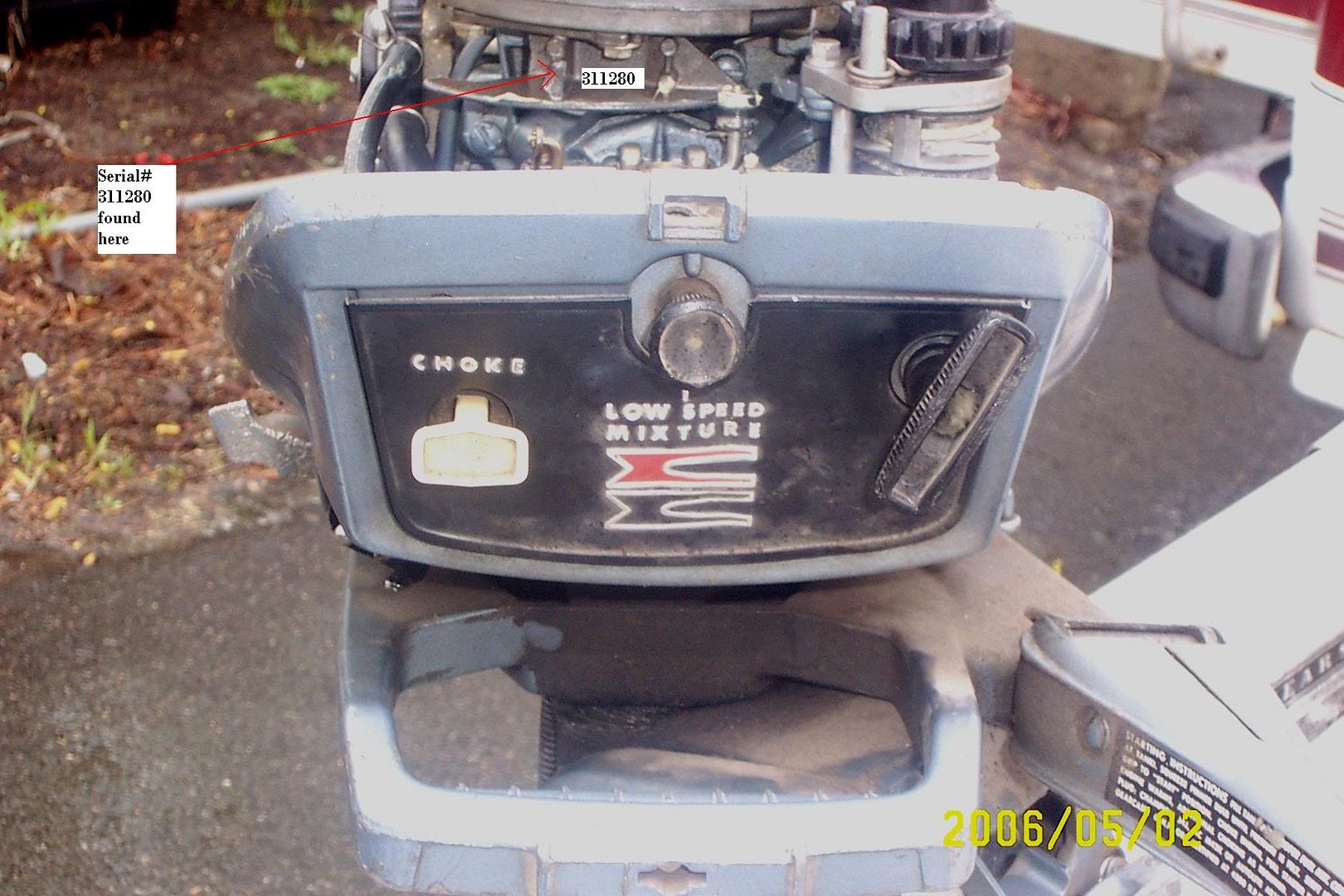

The engine should have a 1" X 3" plate near the top of the transom bracket on the port side. <br />It will have the model and serial numbers on it. <br />Also, on the engine block, behind the spark plug, there will be a Welch plug, about the size of a quarter. <br />If it has two sets of numbers, the first is the model number. <br />If not, the single number will be the serial number, specific to your motor

Chinewalker

Chinewalker

Fleet Admiral
Joined
Aug 19, 2001
Messages
8,902
Re: Pictures of motor

Sorry X - my pic came from the Old OMC site's brochure archive...<br />- Scott

OBJ

OBJ

Supreme Mariner
Joined
Dec 27, 2002
Messages
10,161
Re: Pictures of motor

I think it says "LOCK" and "UNLOCK" Rick.... :) <br /><br />Model number is either on the welch plug or the port transom bracket....as usual.... :)

E

ezeke

Supreme Mariner
Joined
Sep 19, 2003
Messages
12,532
Re: Pictures of motor

In the photos I cannot see under the tiller on the transom bracket, which is where my 1965 plate is. <br /><br />My Welch plug serial number is behind the lower spark plug and from the photograph it does not look like either plug is filled on this motor.

P

Paul Moir

Admiral
Joined
Nov 5, 2002
Messages
6,847
Re: Pictures of motor

Ah, I was comparing it to a later engine.<br />EDIT: Oh, I think we're talking about the same spot. Never mind.

N

n1zw_Robin

Cadet
Joined
Apr 26, 2006
Messages
20
Re: Pictures of motor

Thanks for all the great responces and please let me apologize for the big pictures, i did infact try and delete the first posting because of the size and redid them with just the links to a free photo site.If it is not too much trouble can and would one of the admins please delete the pictures that are too large. I thought I had done that by deleteing my own post this afternoon. Very sorry for any problems all.

rickdb1boat

rickdb1boat

Supreme Mariner
Joined
Jan 23, 2002
Messages
11,195
Re: Pictures of motor

Yeah, you're right OBJ... Brain fart, ya know... Thanks for the "compliment" on the pic anyway, ezeke. Made my night....

OBJ

OBJ

Supreme Mariner
Joined
Dec 27, 2002
Messages
10,161
Re: Pictures of motor

LOL! Awww heck Rick...if it weren't for brain farts...life would be just to dull.<br /><br />I wuz kinda thinking the welch plug was on that roundish part just above and to the rear of the fuel pump. 60's engine for sure.

X

Xcusme

Commander
Joined
Apr 21, 2003
Messages
2,888
Re: Pictures of motor

Originally posted by Chieftanbear:<br /> Thanks for all the great responces and please let me apologize for the big pictures, i did infact try and delete the first posting because of the size and redid them with just the links to a free photo site.If it is not too much trouble can and would one of the admins please delete the pictures that are too large. I thought I had done that by deleteing my own post this afternoon. Very sorry for any problems all.
Click to expand...
Hey Chief...no apology needed..it happens. I was just offering a suggestion to resize the pics, heck, I'm not the photo police here!. Some dial up folks might have gotten frustrated waiting for the pics to load and moved on to another thread. Actually, sometimes it BETTER to have larger pics to show fine details! The guys here on iboats are a great bunch, and always willing to offer a helping hand. Please feel free to ask any questions that may arise.<br />Scott, same goes your way, no apology necessary, heck, I've done it myself.<br />I'll take this opportunity to apologize to anyone I might have offended with my suggestion!

B

BF

Lieutenant
Joined
Apr 8, 2003
Messages
1,489
Re: Pictures of motor

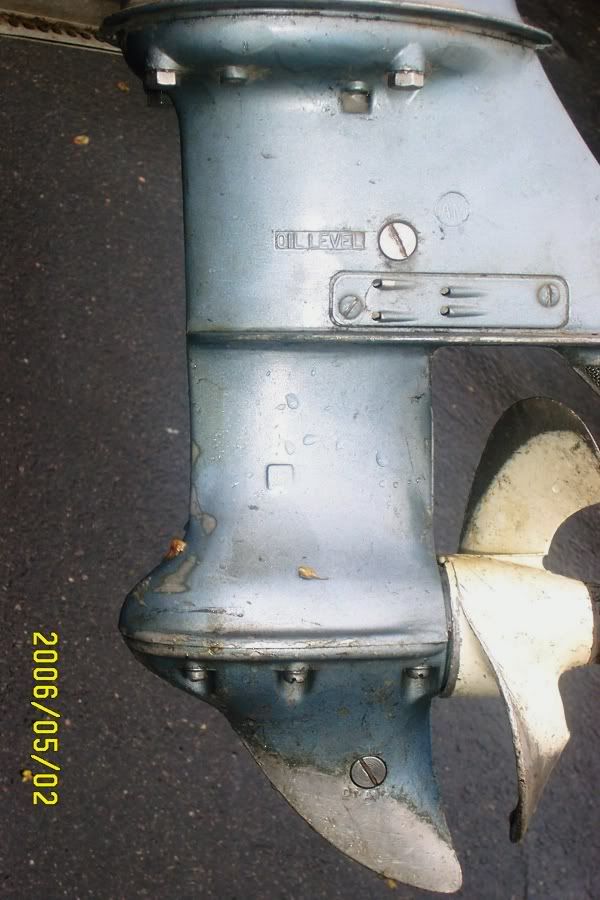

Hi Chief...<br /><br />As per your Q's... 6 hp's are great little motors... I've got a mid 70's version that I use for trolling... it'll putt putt smoothly for hours and hours barely using any gas... They take 50:1 gas:eek:il mix. You say you're new to OB's... rule number 1 is never start it out of water. The rubber water pump impeller will self destruct in moments without water (happens before the engine heats up). If you want to start it at home, put the leg in a garbage can of water. If it's new to you, you should change the lower unit gear oil, and the water pump impeller, and probably spark plugs. Keep the old ones in the boat (and wrench) as spares.... Lower unit oil and impeller are not hard to do, but a service manual helps alot especially the first time.<br /><br />Also, you should pick up a pack of extra drive pins. The drive pin goes through the prop shaft and holes on the prop. If you hit something underwater, the drive pin should break before the gears (they are also called "shear pins" because that's what's supposed to happen). Anyway you can change a broken one easily enough, but you should have spares in the boat. <br /><br />On older motors like these, the coils often have cracks that can cause ignition problems... They're under the flywheel, and you'll need a puller to access them (harmonic balancer puller works good). Parts are still availbable, so no worries if you need something.<br /><br />Edit---<br />I just read the brochure... funny.. I'm pretty sure mine has a shear pin... it says the '65 doesn't (?) Of course I might be mixing my 6hp with other johnny-rudes I have (or had) ?

P

Paul Moir

Admiral
Joined
Nov 5, 2002
Messages
6,847
Re: Pictures of motor

That's not a shear pin. It's a drive pin dont-cha-know? :rolleyes: Or at least that's OMC's claim. I guess they never shear! :D :) <br />Really, that rubber hub really does help with nuiscence shearing compared to the cheaper outboards of the day that used solid hubs. <br /><br />On another note, It's good to see we're a bunch of polite decent folk. :)

Pony

Pony

Rear Admiral
Joined
Jun 27, 2004
Messages
4,355
Re: Pictures of motor

I love those little motors........I have the 1962 version.<br /><br />I second the opinion of keeping spare plugs and a wrench in the boat.<br /><br />My favorite sales pitch in that whole ad is<br />
If you like knobs, there is a manual choke
Click to expand...
I see you are using photobucket to host your pictures......I have not used that site, but can say that if you use imageshack to host your pictures, you can resize them before you upload them at preselected sizes. I generaly just pic the webpage option, or the 15" monitor option and then use the url for a thumbnail.

B

BF

Lieutenant
Joined
Apr 8, 2003
Messages
1,489
Re: Pictures of motor

funny Paul... I didn't realize that "new speak" marketing was common in '65 :) <br /><br />so yes, my original advice stands... get some spare "drive pins" that are unlikely to shear (unless you hit a submerged object firmly) :D

P

PierBridge

Chief Petty Officer
Joined
Sep 3, 2004
Messages
625
Re: Pictures of motor

Resizer works great, you can also resize the pictures using photobucket.<br /><br />Thanks
