Quicksilver 3000 classic throttle control

[bill chambers]

Took the throttle body apart to replace the neutral safety micro switch and in doing so a small apprx 1/4 inch pin fell out and i did not see where it came from. A schematic/diagram of the inner parts and a parts list would be helpful. Or a description of where it goes.



[Fun Times]

Odd, not seeing a modular on the quick for the 3000 but am able to locate both older 2000 and newer 4000 parts breakdown.
Number 9 or 10 maybe for examples,

https://www.perfprotech.com/mercury-marine-parts-catalog/modular-components4000-models/assembly/8457/37?model=4299

https://www.perfprotech.com/mercury-marine-parts-catalog/model/09/430/Remote%20Controls%20and%20Components/1994-up

Genuine Mercury Marine parts, large inventory, fast shipping. Mechanical 1994 & Up

Mechanical 1994 & Up

www.mercruiserparts.com

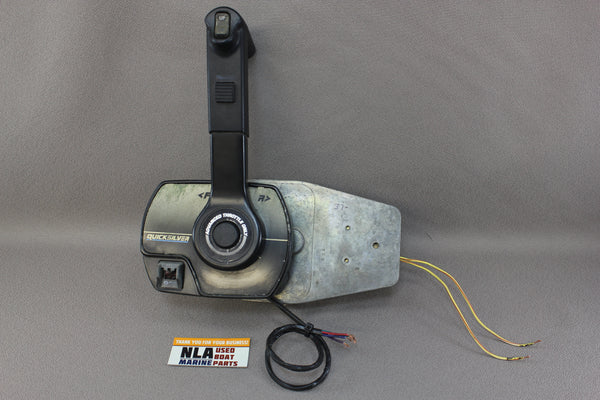

The following would offer a 3000 opened up photo… maybe you can see the part in question,

MerCruiser Commander 3000 Alpha One Quicksilver Shift Throttle Control Box

Item Details MerCruiser Commander 3000 Quicksilver Shift Throttle Remote Control Box Mounting Style Side Mount (Concealed) General Application / Compatibility This would have been found on MerCruiser Alpha One & Possibly Mercury Mariner Outboard Applications from the 1980's to early 90's Other...
